| Tên thương hiệu: | Beishun |
| Số mẫu: | XLB-500X900X2/1.20MN |
| MOQ: | 1 bộ |
| giá bán: | Có thể đàm phán |
| Chi tiết bao bì: | Hộp/thùng gỗ |
| Điều khoản thanh toán: | T/T,L/C |

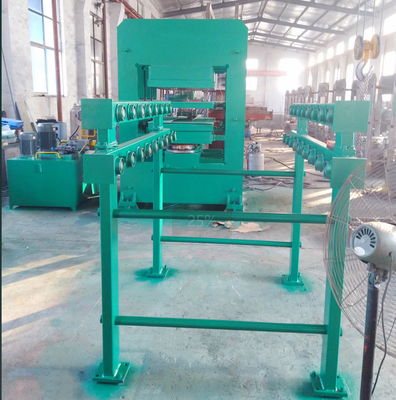

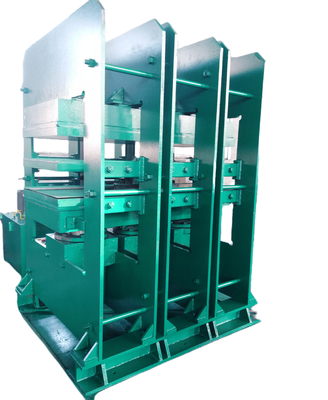

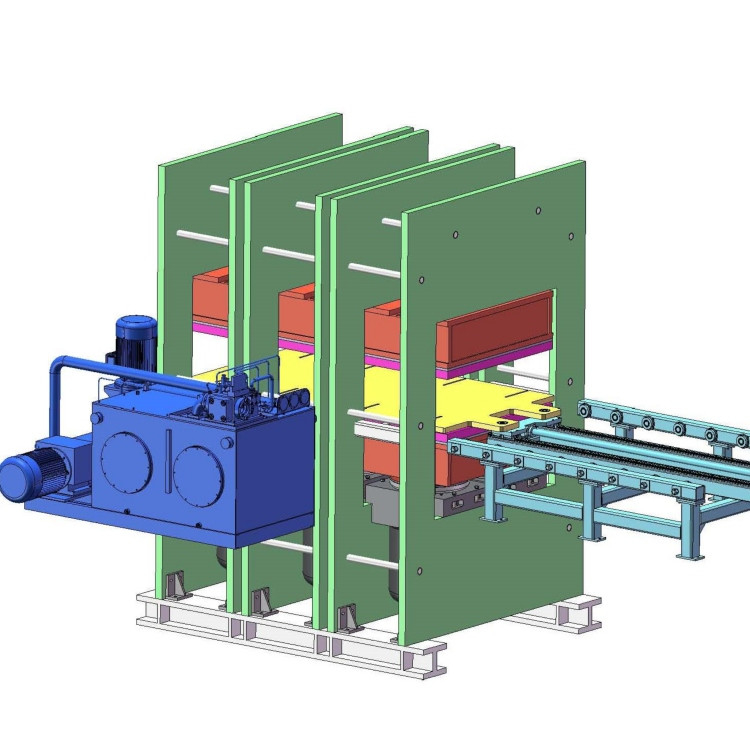

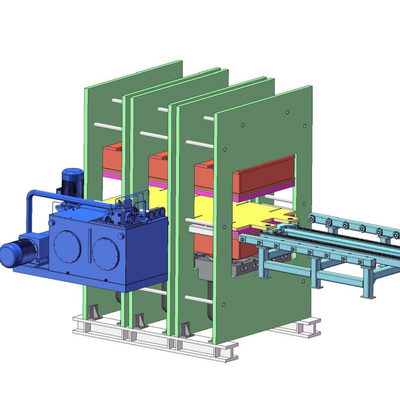

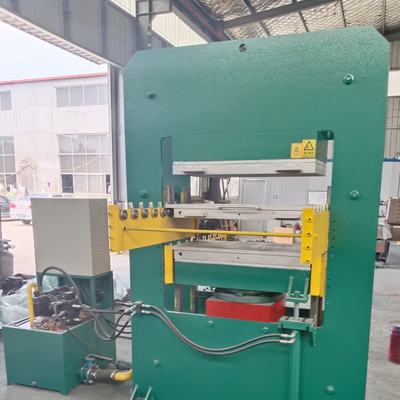

Here’s a detailed technical overview of a Heat Exchanger Rubber Seal Strip Vulcanizing Machine, including key parameters and design considerations:
(For EPDM/Silicone/NBR Seals in Plate/Shell & Tube Heat Exchangers)
| Parameter | Specification | Notes |
|---|---|---|
| Model | HX-VS300 | Customizable for strip profiles |
| Vulcanization Method | Hot Air/Electric Plate/Steam | Choice depends on material (EPDM/silicone) |
| Max. Strip Width | 10~300 mm | Adjustable mold inserts |
| Strip Thickness Range | 1~15 mm | Tolerance: ±0.2 mm |
| Working Temperature | 150°C~200°C | PID-controlled (±1°C) |
| Heating Power | 20~30 kW (Electric) / 0.7~1.0 MPa (Steam) | Energy-efficient insulation |
| Pressure System | Hydraulic (10~15 MPa) or Pneumatic (0.6~0.8 MPa) | Ensures uniform compression |
| Conveyor Speed | 0.5~5 m/min | For continuous vulcanization lines |
| Cooling Method | Water-cooled rollers or air jets | Post-vulcanization stabilization |
| Control System | PLC + HMI (Recipe Storage, Real-time Monitoring) | Supports JIS/ISO 9001 standards |
| Power Supply | 380V, 50Hz, 3-phase | CE/UL certification options |
| Production Capacity | 500~1,200 meters/shift (8 hours) | Depends on profile complexity |
Precision Profile Control
Interchangeable molds for T-shaped, U-shaped, hollow seals.
Laser-guided alignment for multi-layer strips (e.g., metal-rubber composites).
Material Adaptability
Compatible with EPDM (high temp resistance), Silicone (food-grade), NBR (oil-resistant).
Energy Efficiency
Recirculating hot air systems reduce energy consumption by 20% vs. traditional heaters.
Quality Assurance
In-line thickness gauges and automatic defect detection (e.g., bubbles, undercure).
Plate Heat Exchanger Gaskets: Vulcanizing EPDM strips for Alfa Laval/SWEP plates.
Shell & Tube Seals: Silicone/NBR seals for condenser/evaporator tubes.
Automotive Radiators: Continuous vulcanization of reinforced rubber strips.
Vacuum Pre-treatment – Eliminate trapped air for aerospace-grade seals.
Tandem Systems – Combine extrusion and vulcanization in one line.
Automated Cutting – CNC cutters for fixed-length seal segments.
Need a quotation or CAD drawings? Provide:
① Seal cross-section diagram,
② Annual output requirement,
③ Material (e.g., EPDM 70 Shore A).
Let me know if you’d like stress-strain data or compliance certifications (e.g., FDA, REACH).
|
